How Anti-Lock Braking Systems Work: Tech Explained

Imagine driving along a rain-slicked highway or navigating a busy city street when an unexpected barrier suddenly appears in your lane. Your instinct is to slam your foot down on the brake pedal with maximum force. In an older vehicle without modern safety electronics, that sudden pressure would instantly jam the brake pads against the rotors, locking the wheels in place. The tires would lose their grip on the pavement, transforming into slick rubber blocks sliding out of control. Once your wheels stop spinning, turning the steering wheel does absolutely nothing—you simply slide in whatever direction momentum carries you.

This dangerous loss of control is precisely what the Anti-Lock Braking System (ABS) was engineered to prevent. First adopted in production passenger vehicles during the 1970s, ABS stands as one of the earliest forms of Advanced Driver-Assistance Systems (ADAS). Rather than aiming purely to stop a vehicle faster, the primary objective of ABS is to keep the wheels rotating just enough so that you can steer around obstacles during an emergency stop.

To understand how anti-lock braking systems work, we need to look under the hood at the seamless real-time coordination between wheel sensors, a central computer, and high-speed hydraulic valves.

15 to 30 HzPressure modulation speed per second

10% to 20%Optimal tire slip ratio for maximum braking force

33%Global new vehicles featuring ABS-rooted ADAS by 2021

The Physics of Skidding: Why Wheels Lock Up

To grasp why ABS exists, it helps to understand what actually happens at the point where rubber meets the road. A tire decelerates a vehicle through friction against the asphalt. Under normal driving conditions, a rolling tire maintains static grip—the patch of rubber contacting the road is momentarily stationary relative to the pavement beneath it.

When you slam on the brakes without ABS, the clamping force of the brake caliper overcomes the road's grip, causing the wheel to stop rotating completely while the car is still moving forward. This is called a 100% slip ratio. A locked tire transitions from static friction to sliding kinetic friction, drastically reducing your ability to alter the vehicle's direction.

Automotive engineers discovered that peak stopping power does not happen when a tire is freely rolling (0% slip) or when it is completely skidding (100% slip). Instead, maximum braking performance occurs at a target slip ratio between 10% to 20%. Within this narrow window, the tire is rotating slightly slower than the road speed, maximizing drag without breaking free into an uncontrolled slide. ABS is engineered explicitly to monitor this threshold and keep the tire operating inside this optimal grip zone.

The Hardware: Inside the ABS Ecosystem

An Anti-Lock Braking System is a closed-loop electronic and hydraulic control architecture. It relies on four primary hardware components working in continuous synchronization:

• Wheel Speed Sensors (WSS): Mounted at each wheel hub, these inductive or Hall-effect sensors measure the exact rotational speed of individual wheels and send high-frequency signal pulses to the control unit.
• Electronic Control Unit (ECU): The dedicated microcomputer acts as the central brain of the system. It continuously analyzes speed signals from all wheels, calculates the true ground speed of the vehicle, and detects subtle anomalies that indicate a wheel is about to lock up.
• Hydraulic Control Unit (HCU) / Valve Block: Located between the master brake cylinder and the brake calipers, this assembly houses solenoid valves, fluid accumulators, and an electric hydraulic pump to physically manipulate brake fluid pressure.
• Solenoid Valves: Electromechanical switches inside the HCU that open and close in milliseconds to hold, release, or re-apply hydraulic pressure to individual brake calipers.
• Electric Return Pump: A motor-driven pump inside the HCU that pushes high-pressure brake fluid back toward the brake pedal during pressure-release cycles.

Most modern vehicles pair ABS with disc brake assemblies—which use cast-iron discs, calipers, and friction pads—because disc brakes provide precise force regulation without unpredictable "self-servo" grabbing. However, ABS can also be integrated into rear drum brakes found on budget compact cars by placing dedicated speed sensors and hydraulic control valves on the rear axle line.

How ABS Works: Step-by-Step During an Emergency Stop

When you press the brake pedal normally, fluid flows from the master cylinder straight to the brake calipers, squeezing the pads against the rotors. But during an emergency panic stop, the ABS ECU detects that one or more wheels are slowing down at an impossible rate compared to overall vehicle motion—a clear signal of an impending skid.

1. 1
   Pressure Hold

   Inlet valve closes to trap fluid in caliper, blocking extra pedal force.

2. 2
   Pressure Release

   Outlet valve opens to dump fluid into accumulator, unlocking the wheel.

3. 3
   Pressure Re-apply

   Return pump forces fluid back to line, re-engaging brake clamping force.

Once an impending lockup is identified, the ABS executes a real-time cycle operating within milliseconds across three distinct phases:

Phase 1 – Pressure Hold

The moment the ECU detects rapid wheel deceleration, it energizes the inlet solenoid valve for that wheel's hydraulic circuit, closing the fluid line. This traps the existing hydraulic pressure inside the brake caliper. Even if the panicked driver pushes down harder on the brake pedal, no additional hydraulic force reaches the caliper, preventing the brake pads from gripping any harder and locking the wheel.

Phase 2 – Pressure Release

If the wheel speed continues to drop toward a full lockup despite holding the pressure, the ECU opens the outlet solenoid valve. Excess high-pressure brake fluid immediately bleeds out of the caliper line into a low-pressure accumulator reservoir. This sudden drop in clamping force allows the tire to regain traction and resume rotating.

Phase 3 – Pressure Re-apply

Once the wheel speeds up and catches up with the vehicle's momentum, the ECU closes the outlet valve and opens the inlet valve again. The system's electric return pump kicks in, pumping fluid back out of the accumulator and pushing high-pressure fluid into the brake line to re-engage clamping force on the wheel.

High-Frequency Modulation and Driver Feedback

This three-phase sequence (Hold, Release, Re-apply) does not just happen once. Modern electronic ABS repeats this high-frequency modulation between 15 to 30 times per second (Hz).

Because the electric return pump is constantly fighting against the effort of your foot, pushing brake fluid back toward the master cylinder during release cycles, you will feel a firm physical vibration or pulsation through the brake pedal. This pulsation, accompanied by a rapid chattering sound, is complete proof that the ABS is actively managing hydraulic pressure to preserve your control.

The Evolution: From Aviation Mechanics to Modern ADAS

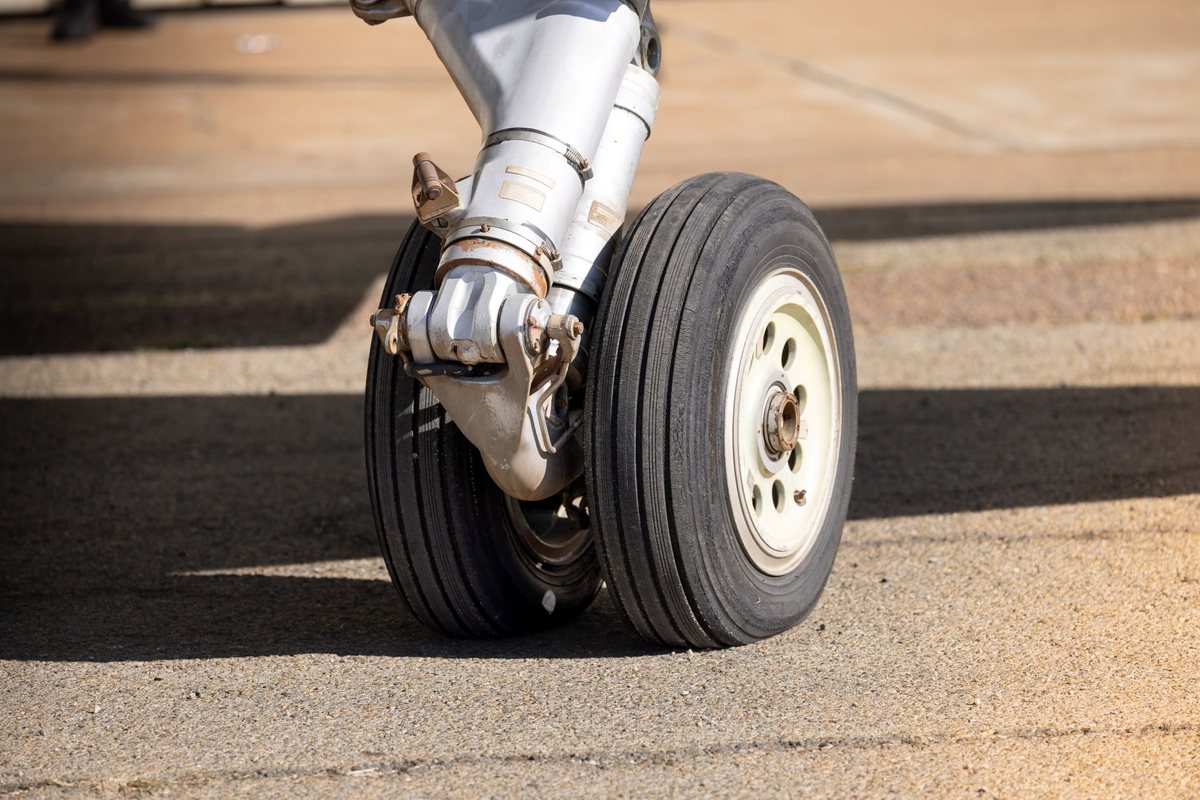

The technical concepts behind anti-skid systems did not begin on four wheels. The earliest mechanical anti-skid systems were developed in the 1920s and 1930s for aircraft landings. High-speed airplane landings on unpredictable runways frequently caused tire blowouts and dangerous skids; mechanical flywheel systems were used to temporarily bleed off brake pressure when landing wheel deceleration exceeded safe limits.

During the mid-20th century, engineers conducted early automotive tests with mechanical systems on race cars and heavy industrial vehicles. However, mechanical setups were slow, bulky, and lacked the microsecond processing speeds needed for passenger road vehicles.

1. 1920s-1930s

   Mechanical anti-skid systems deployed on aircraft to prevent landing blowouts.

2. Mid-20th Century

   Mechanical systems tested on race cars but fail to meet road-car speed demands.

3. 1970s

   Robert Bosch GmbH refines digital electronic ABS for production passenger cars.

4. 2021

   33% of new global vehicles feature advanced safety suites rooted in ABS architecture.

The digital era transformed safety tech in the 1970s, when major automotive suppliers like German engineering firm Robert Bosch GmbH refined digital electronic ABS architectures. Replacing mechanical flywheels with semiconductor microprocessors, speed sensors, and high-speed solenoid valves made real-time anti-lock protection viable for everyday drivers.

Today, ABS logic forms the foundational base for modern vehicle safety suites. Traction Control Systems (TCS), Electronic Stability Control (ESC), and Automatic Emergency Braking (AEB) all utilize the high-speed sensors, ECU logic, and hydraulic valve blocks originally invented for ABS. By 2021, approximately 33% of new vehicles sold globally across major automotive markets (including the US, Europe, Japan, and China) featured driver assistance suites rooted directly in ABS electronics.

Real-World Impact: Driving ABS on Indian Roads

Driving conditions across India present unique daily challenges—ranging from waterlogged city streets during the monsoon season and oil slicks to loose gravel, unpaved shoulders, and sudden panic stops caused by stray animals or jaywalking pedestrians.

To boost passenger safety, Indian regulatory bodies instituted strict equipment rules:

• Passenger Cars: Under Indian safety norms (AIS 145 / AIS 005), all new passenger cars sold in India must be equipped with ABS as a factory-standard feature.
• Two-Wheelers: Under the Central Motor Vehicles Rules (CMVR), ABS is legally mandatory for all new motorcycles sold in India with an engine displacement over 125cc. Motorcycles with engine capacities below 125cc are required to feature a Combined Braking System (CBS).

Single-Channel

• Single-Channel ABS
• Monitors and modulates front wheel speed only
• Used on budget commuter bikes (e.g., Pulsar 150, TVS Apache 160)
• Lower production cost, prevents front-end washouts

VS

Dual-Channel ABS

• Dual-Channel ABS
• Monitors and modulates both front and rear wheels independently
• Used on higher-capacity bikes (e.g., Royal Enfield Classic 350, KTM Duke)
• Maximum stability, prevents both front slide and rear wheel lift

For two-wheeler riders, the distinction between single-channel and dual-channel implementations is crucial. On budget commuter bikes, single-channel systems prevent the catastrophic loss of front-wheel traction, which is the leading cause of two-wheeler washouts. Dual-channel systems on higher-capacity motorcycles monitor both ends independently, providing absolute stability on treacherous surfaces like wet tarmac or unexpected patches of sand.

Debunking Common ABS Myths

Despite ABS being standard on millions of vehicles, several common misconceptions persist regarding how the technology operates:

Myth 1: "ABS Always Shortens Your Stopping Distance"

While ABS usually shortens stopping distances on clean, dry pavement or wet asphalt, that is a secondary benefit. On loose surfaces like deep gravel, sand, or unpaved mud roads, a locked tire can actually build up a wedge of material in front of itself that brings the vehicle to a halt quicker than a rotating tire would. On these specific loose surfaces, ABS may slightly increase stopping distance—but it guarantees that you retain steering control throughout the stop.

Myth 2: "You Should Pump the Pedal When ABS Activates"

Before ABS existed, drivers were taught to manually "pump" the brake pedal to prevent total wheel lockup. Doing this in a modern vehicle directly conflicts with the system. Pumping manual brakes disrupts the ECU's rapid calculation logic.

Myth 3: "Pedal Vibrations Mean Your Brakes Are Broken"

When drivers experience severe pedal vibration and hydraulic grinding noises for the first time during an emergency stop, some instinctively pull their foot off the pedal, thinking the braking system has failed. That pushback is entirely normal—it is simply the hydraulic return pump forcing fluid against your foot to release pressure at the brake caliper.

Braking Systems Compared: ABS vs Conventional vs CBS

To understand how far safety technology has evolved, let's examine how different braking configurations handle emergency situations:

The Bottom Line

An Anti-Lock Braking System is not magic—it is an elegant blend of physics, high-speed microprocessing, and mechanical fluid dynamics working together seamlessly. By taking over hydraulic brake pressure modulation up to 30 times every second, ABS bridges the gap between human reflexes and physical road grip. The next time you feel that sudden pulse through your brake pedal on a wet road, you'll know that speed sensors, solenoid valves, and microcomputers are actively coordinating to keep you in total control.
